SuperForm ICF accessories
Small details. Stronger builds.
From the first course to the finished foundation, get the components that make the whole ICF system work.
SuperForm Authorized Dealer · Camrose & central Alberta
The complete accessory range
Get the right parts.
Before the pour.
A great ICF wall depends on more than the block. Bracing holds the line. Connections carry the loads. Waterproofing and drainage protect the below-grade assembly.
Explore the SuperForm accessory range below, then contact Woodwright to confirm pricing, availability and the right combination for your plans.

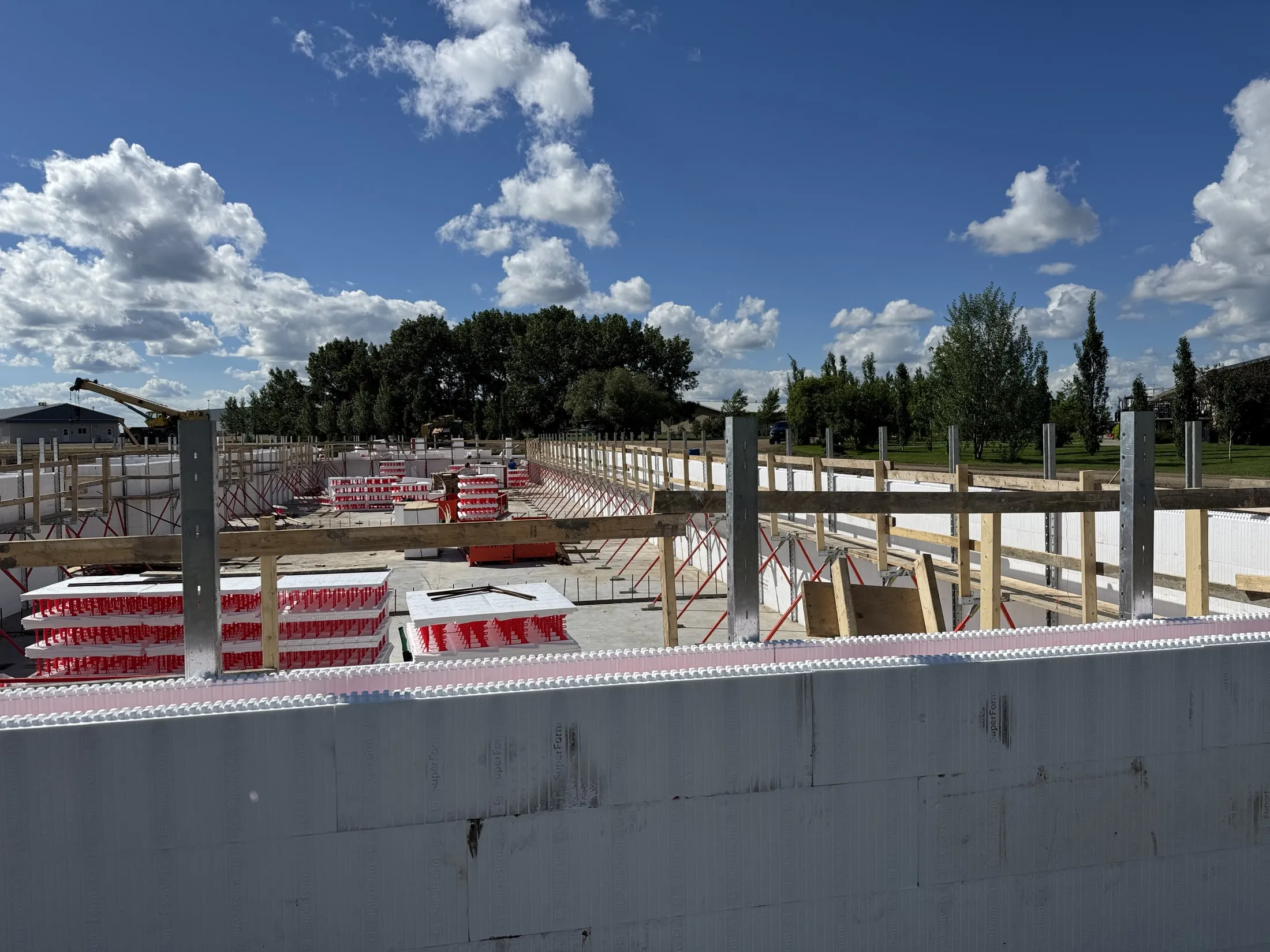

01 / ICF bracing
Straight walls. Supported openings.
Choose the wall-alignment system and opening supports before the pour. Wall height, access and the project bracing plan determine the right setup.

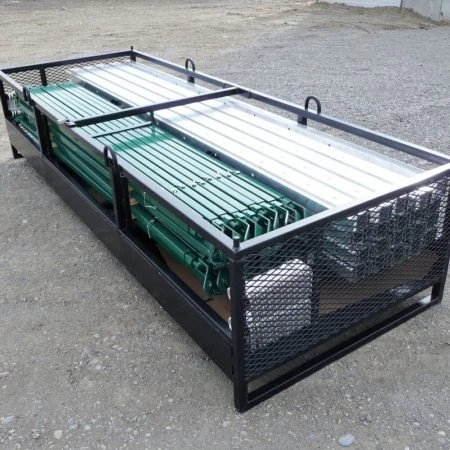

Hilltop Bracing
Lightweight aluminum bracing for aligning and supporting ICF walls. Stackable transport crates keep the system together between projects.
Sizes & ordering
- Lengths
- 8, 9, 10 and 12 ft
- Crate
- 40 braces
- Ordering
- Individual parts or complete sets

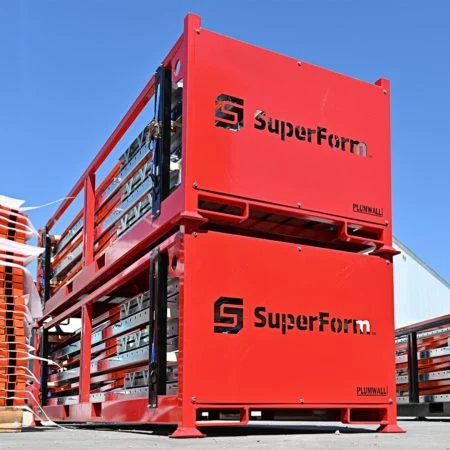

Plumwall Bracing
An all-in-one brace with alignment adjustment at platform level, helping the installer fine-tune the wall from the working position.
Sizes & ordering
- Lengths
- 8, 9, 10 and 12 ft
- Crate
- 24 braces; 10 or 12 ft crate options
- Ordering
- Individual parts or complete sets

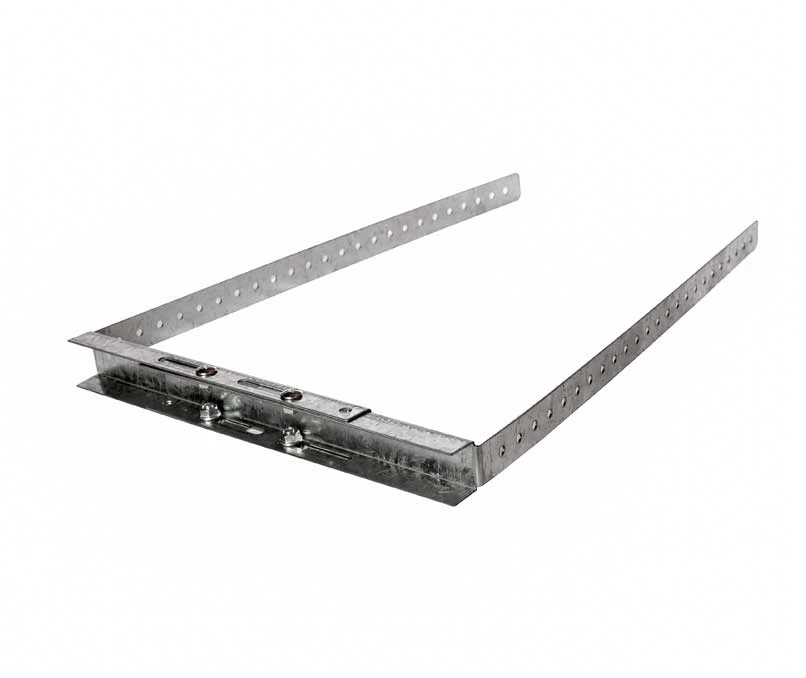

Burmon Buck Brace
Reusable support for window and door bucks during the concrete pour. The adjustable brace reduces the need for temporary horizontal wood bracing.
Sizes & ordering
- Fits ICF cores
- 4, 6, 6½ and 8 in
- Use
- Window and door openings
Install and space braces to the manufacturer’s instructions and project requirements.

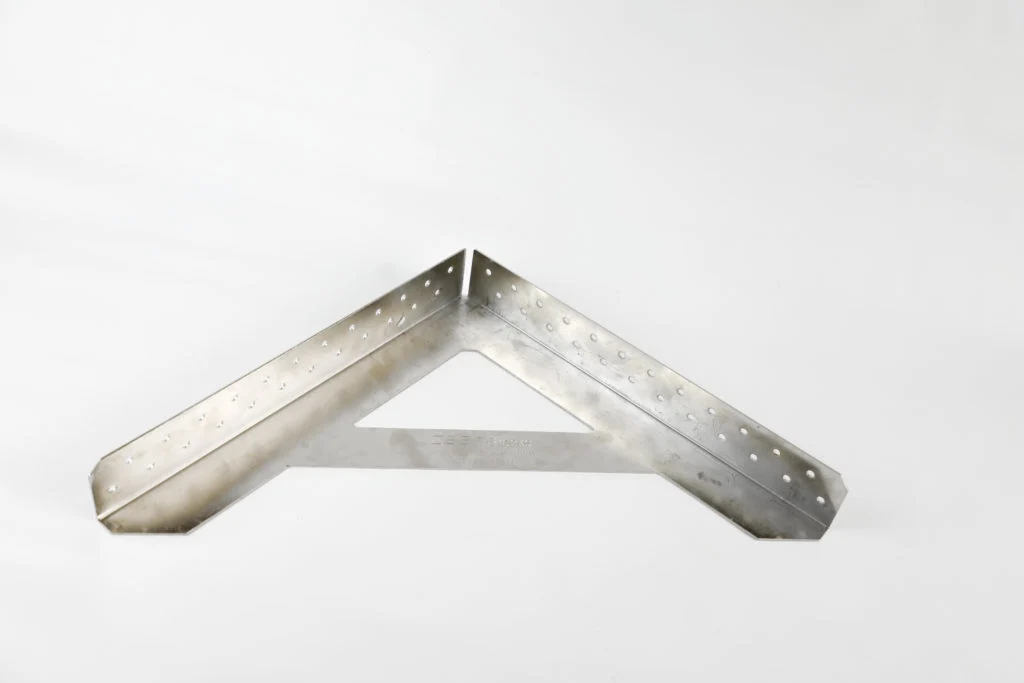

Fab-Form ZEE T-Bracket
A steel bracket option for forming T-junctions using straight blocks. It reduces block intersections and offcuts at the junction.
Sizes & ordering
- Material
- Zinc-plated steel
- Weight
- 2.9 lb each
- Specified screws
- 1½ in × #8 deck screws
02 / Waterproofing & drainage
Plan the whole foundation detail.
Membranes, drainage layers and terminations work together. Choose a compatible assembly for your site conditions, then include the small parts that complete it.
A sheet membrane, compatible detailing sealant and firm contact with the prepared surface.
See the components ↓A liquid membrane reinforced with the matching textile where specified.
See the components ↓SUPERSEAL and SuperForm Drainage Board have their own edge trim and fastening parts.
See the components ↓
Soprema
Self-adhered rubberized sheet membrane for below-grade ICF damp-proofing. Plan the overlaps, wall details and surface preparation as one assembly.
Sizes & ordering
- Roll
- 3 ft × 75 ft
- Wall coverage
- 200 ft² per roll, including overlap
- Packaging
- Per roll or pallet of 30
Use the required roller and follow current membrane preparation, temperature and installation instructions.

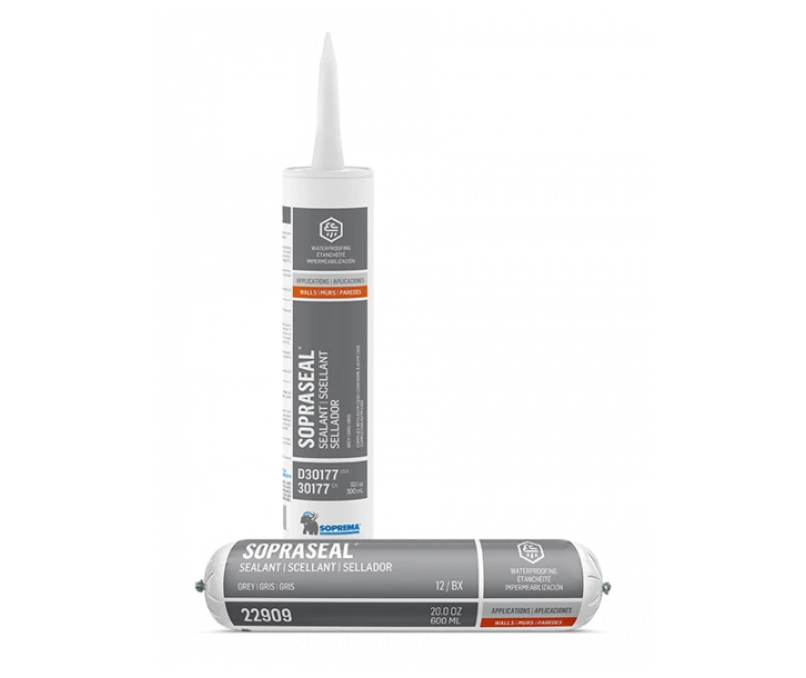

Sopraseal Sealant
Low-VOC, moisture-curing polyether sealant for wall details and compatible self-adhered membrane connections.
Sizes & ordering
- Published coverage
- 150 linear ft per tube
- Packaging
- 24 tubes per box
- Formulation
- Solvent- and isocyanate-free
Actual coverage depends on joint dimensions and application.

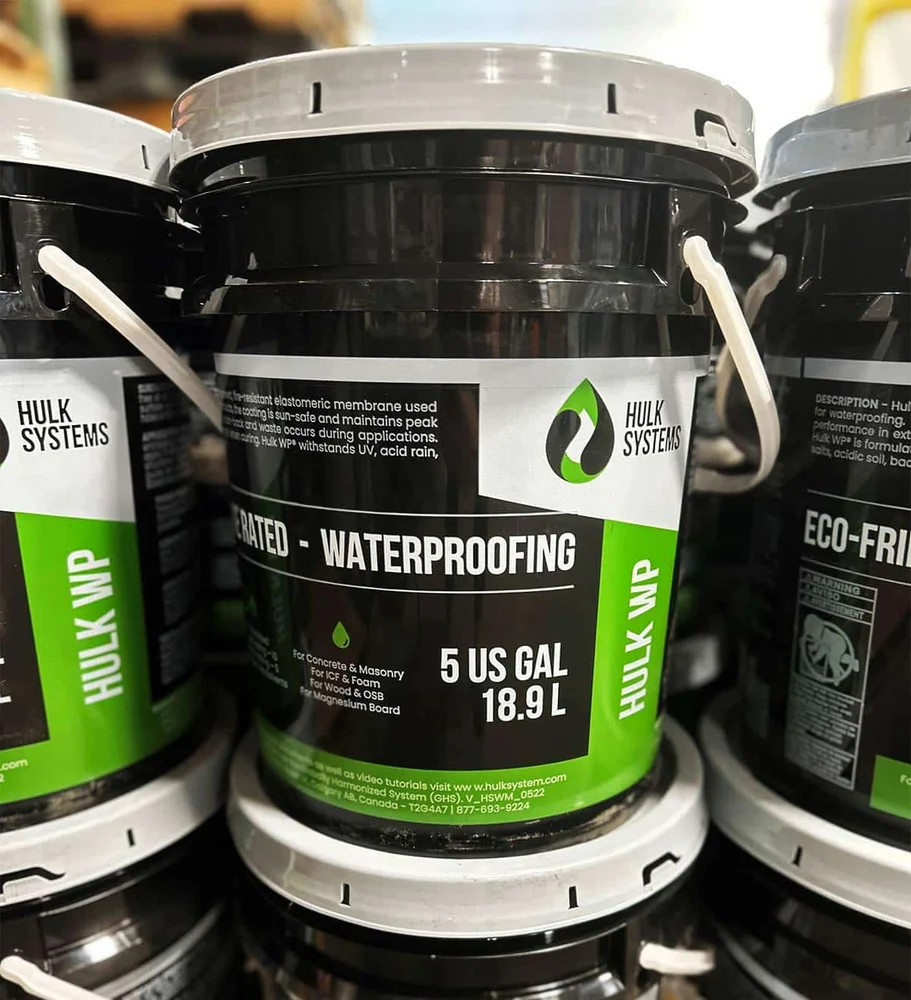

Hulk WP®
Cold-applied elastomeric waterproofing coating for the foundation wall. Combine with Hulk SRT reinforcing textile where specified for a continuous reinforced membrane.
Sizes & ordering
- Type
- Single-component liquid membrane
- Published cured thickness
- 40 mil
- Substrate
- Non-corrosive on foam
Confirm preparation, coverage and application requirements for the complete Hulk system.

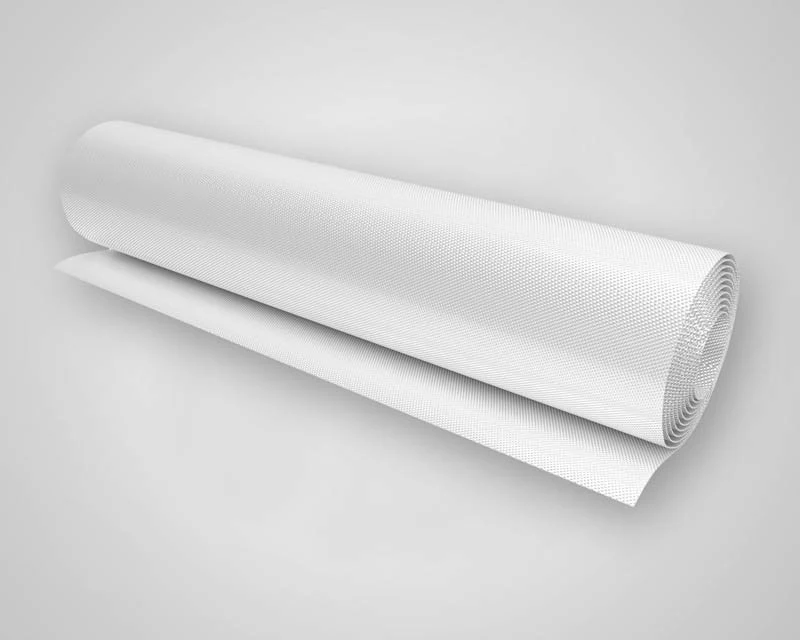

Hulk SRT®
Quartz-resin-infused fibreglass textile embedded into Hulk WP to reinforce the waterproofing layer.
Sizes & ordering
- Roll
- 50 in × 108 ft
- Published coverage
- 450 ft² per roll
- Weight
- 60 lb (27.22 kg) per roll
Sold per roll.

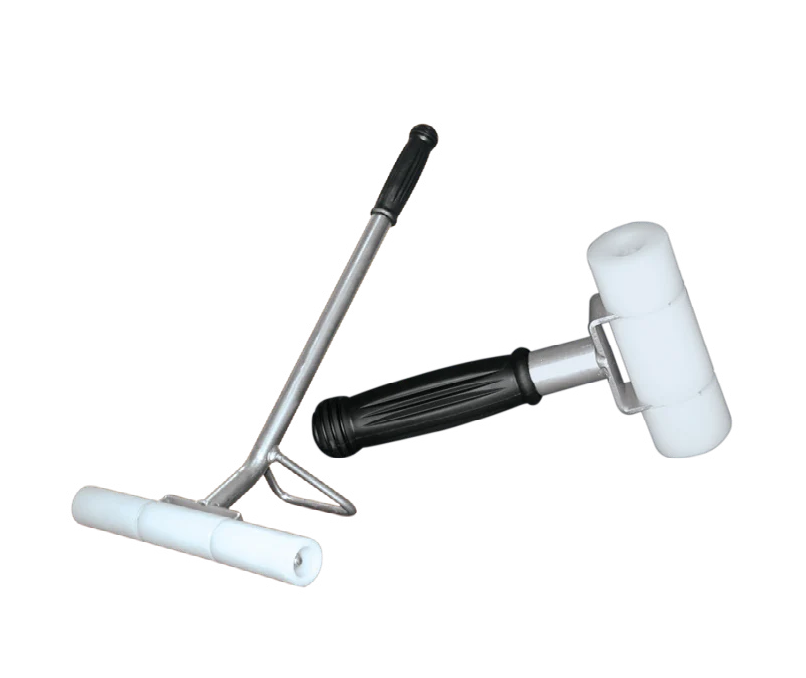

Neoprene Roller
Presses peel-and-stick membrane firmly against the prepared ICF surface for consistent contact.
Sizes & ordering
- Ordering
- Sold individually
- Use with
- Soprema membrane
SuperForm specifies a neoprene roller for Soprema warranty coverage. Follow the current product instructions.

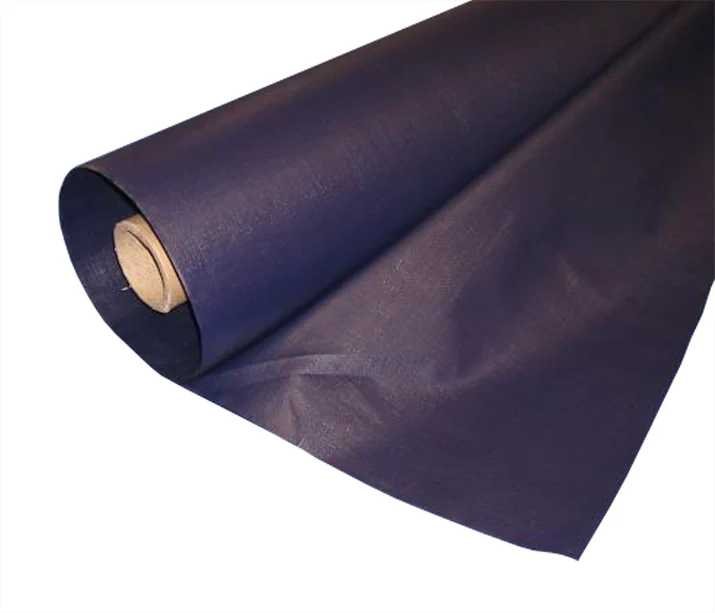

Tarps
One-piece plastic protection for the wall perimeter and temporary protection from UV exposure.
Sizes & ordering
- Widths
- 6, 8, 10 or 12 ft
- Length
- 180 ft
- Ordering
- Sold individually
Temporary protection is not a substitute for the specified permanent waterproofing and finish.
SUPERSEAL Dimpled Foundation Membrane
A dimpled plastic membrane that separates the foundation from backfill and creates a drainage space toward the footing drain.
Sizes & ordering
- Roll widths
- 7 ft 11 in or 8 ft 11 in
- Length
- 65.5 ft per roll
- Published coverage
- 518 or 583 ft² respectively
Allow approximately 2 bundles of caps and 3 bags of SuperPlugs for the 7 ft 11 in roll, or 4 bags for the 8 ft 11 in roll. Confirm quantities for your layout.

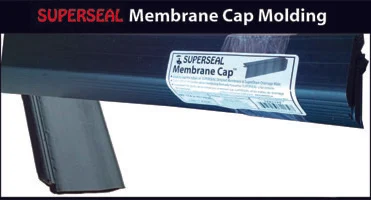

Membrane Cap
L-shaped plastic trim for closing open edges of the SUPERSEAL membrane, including horizontal and vertical terminations.
Sizes & ordering
- Use with
- SUPERSEAL dimpled membrane
- Ordering unit
- Bundles
Confirm the bundle quantity required for your perimeter.

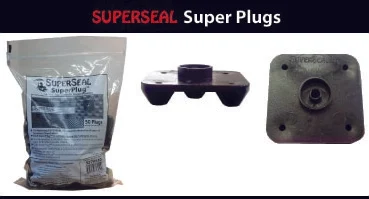

SuperPlug
Five-dimple plugs interlock with SUPERSEAL membrane to spread the fastening connection across the sheet.
Sizes & ordering
- Packaging
- 50 per bag
- Use with
- SUPERSEAL dimpled membrane
Sold per bag.

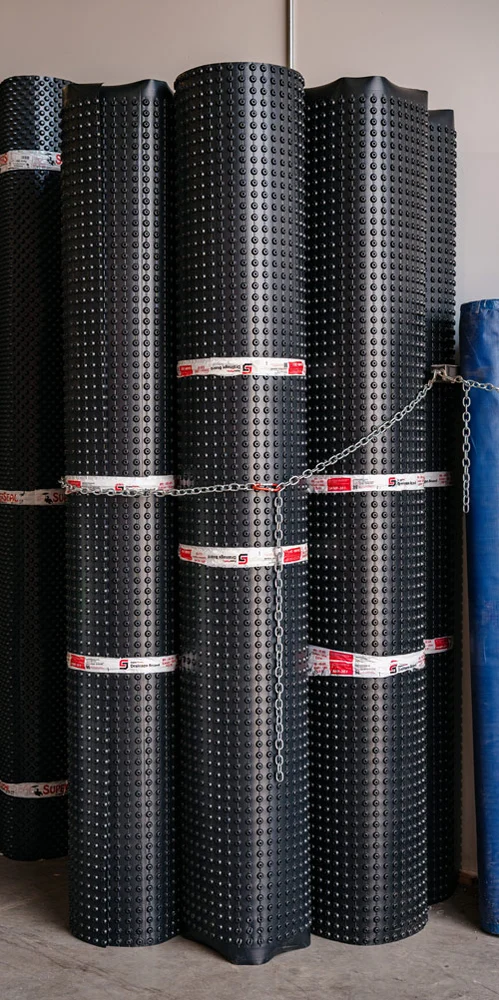

SuperForm Drainage Board
Dimpled HDPE board that provides an air space and moisture barrier at foundation and flooring assemblies.
Sizes & ordering
- Widths / codes
- 8 ft / DAMP-20.1; 9 ft / DAMP-21; 9 ft 10 in / DAMP-22
- 8 ft roll
- 65.5 ft long; published coverage 525 ft²
- Ordering
- Sold per roll
The manufacturer publishes roll length and coverage for the 8 ft option; confirm the other roll sizes when ordering.

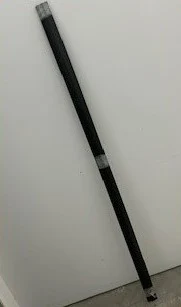

Drainage Board Moulding
Edge trim for the SuperForm Drainage Board system. Include it when working out the wall perimeter and terminations.
Sizes & ordering
- Length
- 6 ft 6 in
- Packaging
- 10 pieces per bundle
- Item code
- DAMP-20.2
Manufacturer’s planning allowance: approximately 1 bundle per drainage-board roll.
Drainage Board Metal Fasteners
Metal fastening components for securing the SuperForm Drainage Board assembly with the specified ICF screws.
Sizes & ordering
- Packaging
- 65 per bundle; 4 bundles per box
- Item code
- DAMP-20.3
Per board roll, allow approximately 1 bundle of fasteners and 1 box of 500 × 2 in ICF screws.
See the installation
Good protection starts at the surface.

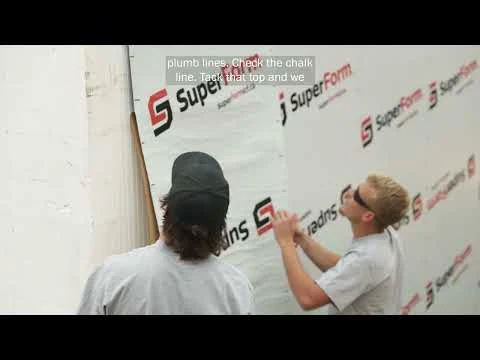

Watch SuperForm demonstrate peel-and-stick membrane installation. Surface preparation, overlaps and rolling are details worth planning before the crew starts.
The video demonstrates a membrane installation method. Use the current instructions for your selected product, substrate and site conditions.
SuperForm’s membrane installation walkthrough.
Watch on YouTube (opens in a new tab)↗ By playing, you connect to YouTube. Privacy details.03 / ICF hangers & anchors
Make the connection part of the plan.
Connect floors, ledgers and roof framing to the wall with purpose-made hardware. Select the exact connector and fasteners to suit the engineered connection.

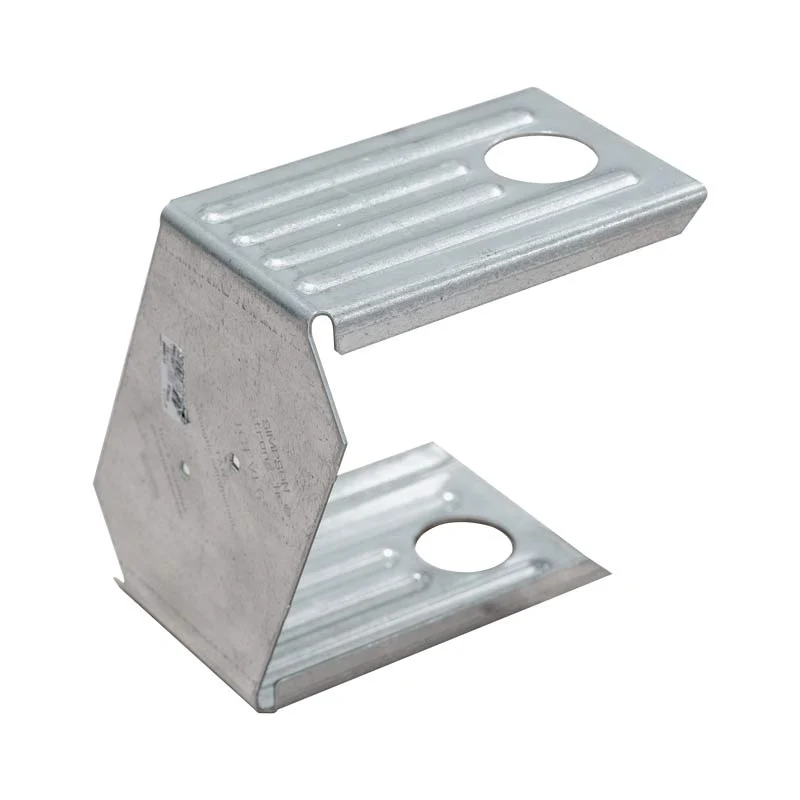

Simpson ICFVL
Cast-in ledger connector with legs embedded in the concrete and an exposed flange for the ledger connection. Plan its position before the pour.
Sizes & ordering
- Packaging
- 10 per box
- Use
- Wood or steel ledger connection
Connector spacing, loads and fastening must follow the current engineered detail.

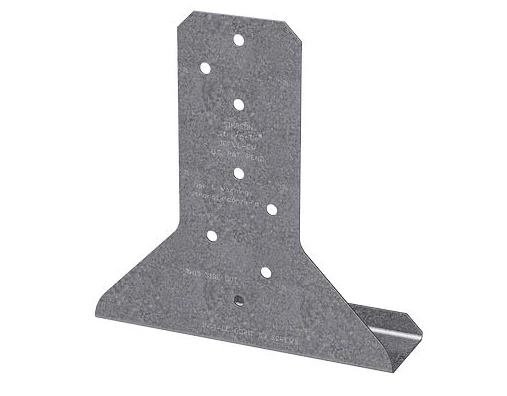

Simpson ICFVL-CW/W
Ledger attachment used with the ICFVL connector. Choose the variant that matches the specified ledger thickness.
Sizes & ordering
- CW option
- 1¾ in ledger
- W option
- 1½ in ledger
- Packaging
- 15 per box
Use the prescribed screws and current Simpson installation detail; the variants are not interchangeable.

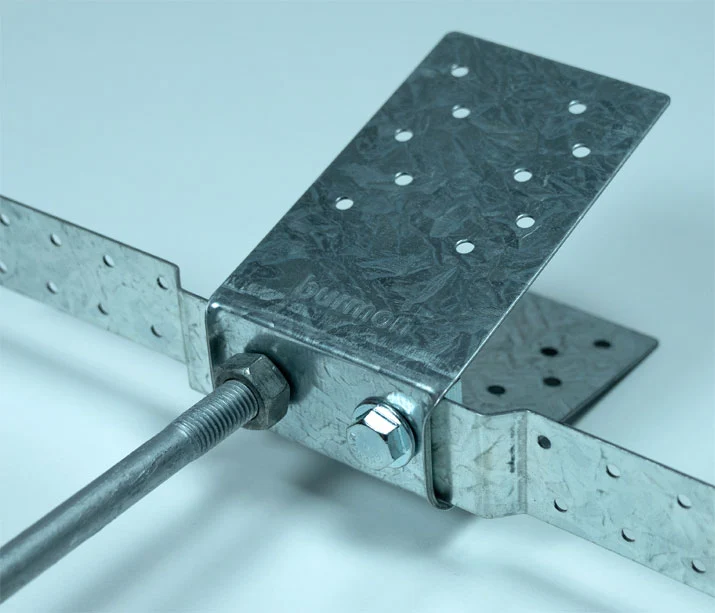

Burmon BHBCON
Hurricane anchor cast into the concrete to connect roof trusses or rafters directly to the concrete wall.
Sizes & ordering
- Connection
- Concrete
- Packaging
- 30 per box
Install before the concrete sets. Use the specified Burmon roofing screws and engineered connection detail.

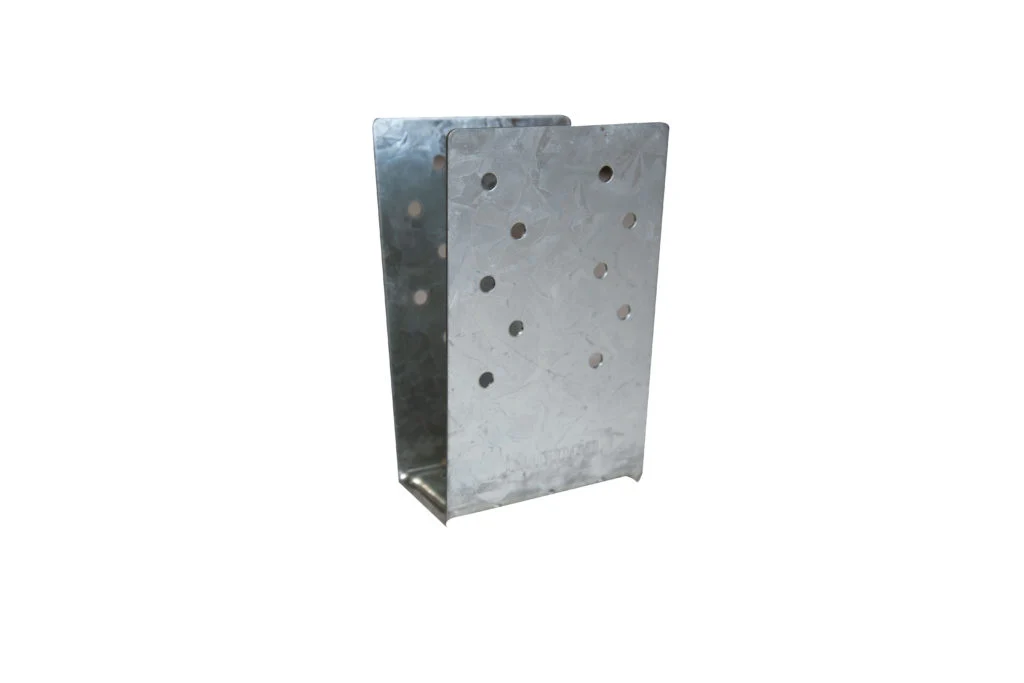

Burmon BHBSP
Hurricane anchor that attaches to the timber top plate or mudsill, then connects to the roof truss.
Sizes & ordering
- Connection
- Mudsill / top plate
- Packaging
- 50 per box
Use the specified Burmon panhead and roofing screws for the approved assembly.

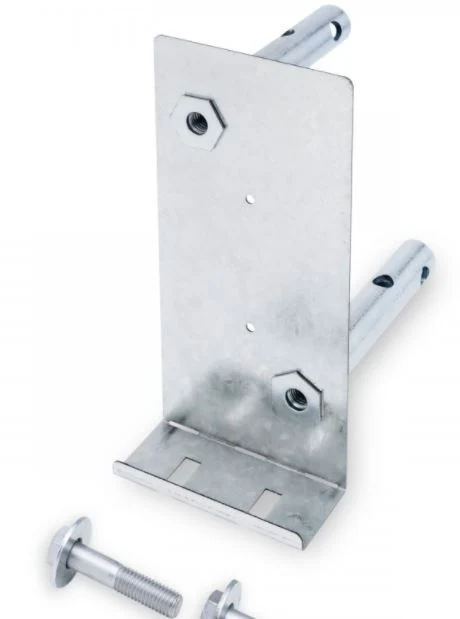

Burmon ICFWL
ICF ledger connector using Burmon’s double-threaded cylinder-bolt system to anchor the ledger assembly through to the concrete.
Sizes & ordering
- Listed option
- Wood ledger
- Packaging
- 10 per box
Confirm the compatible bracket, ledger, fasteners and design loads together.
Floor connections, explained
See how the ledger connection comes together.
Follow SuperForm’s two-part demonstration of the Simpson Strong-Tie ICFVL ledger system. Use current Simpson instructions and the engineered connection detail for your project.

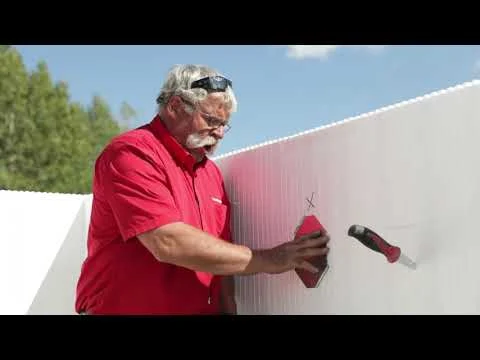

Part 1: preparing the ICF wall and installing the Simpson ICFVL connector.
Watch on YouTube (opens in a new tab)↗ By playing, you connect to YouTube. Privacy details.
Part 2: continuing the Simpson ICFVL ledger-system installation.
Watch on YouTube (opens in a new tab)↗ By playing, you connect to YouTube. Privacy details.04 / Spray foam
Close the gaps. Keep the work moving.
EPS-compatible low-expansion foam, a reusable applicator and cleaner for joints, openings and service penetrations.

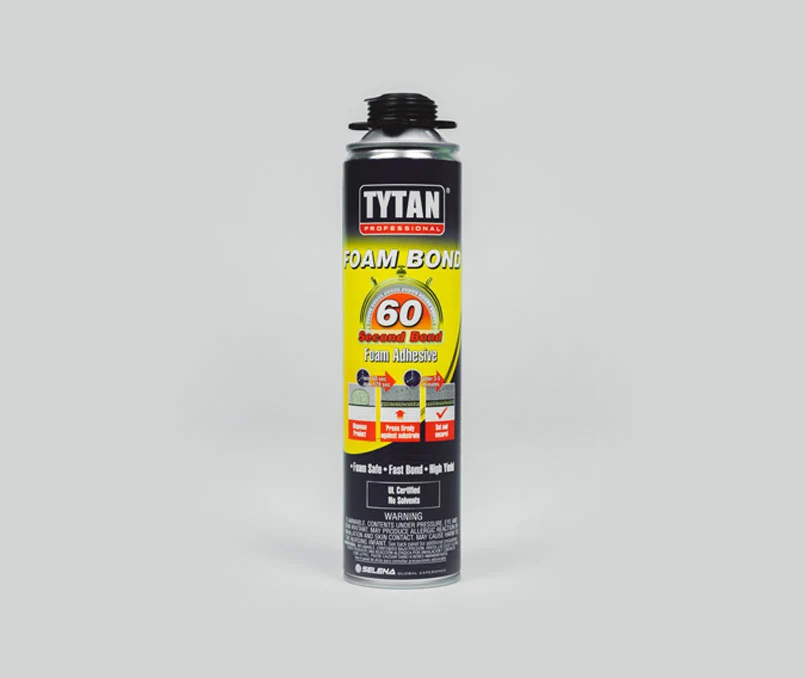

Low-expansion Foam
EPS-compatible foam for form joints, service penetrations and insulation around openings.
Sizes & ordering
- Packaging
- 12 bottles per box
- Application
- Reusable foam gun
Use according to the product instructions.

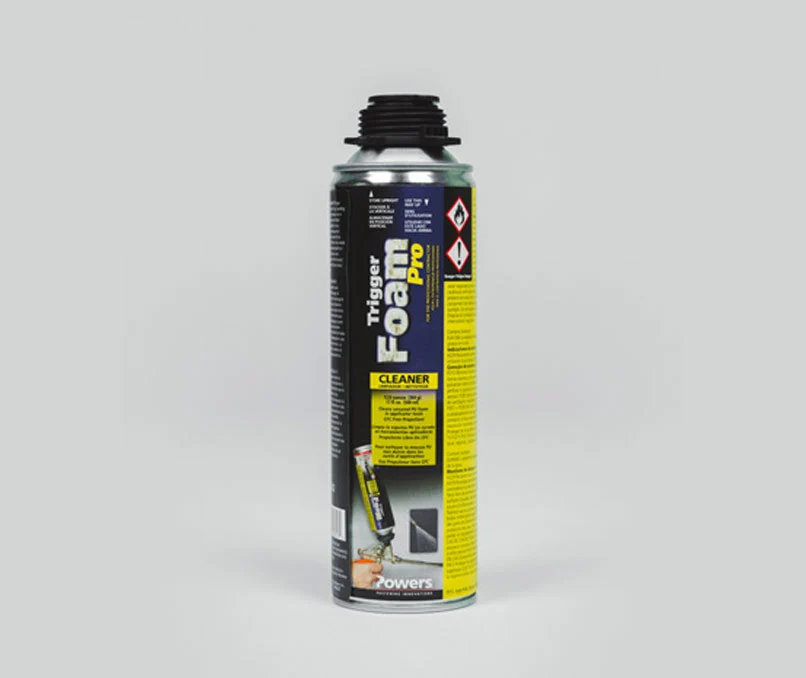

Foam Gun Cleaner
Cleaner for maintaining the foam gun and cleaning residue from its external surfaces.
Sizes & ordering
- Packaging
- 6 per box
- Ordering
- Individually or per box
Follow the cleaner instructions and clean the applicator at the recommended intervals.

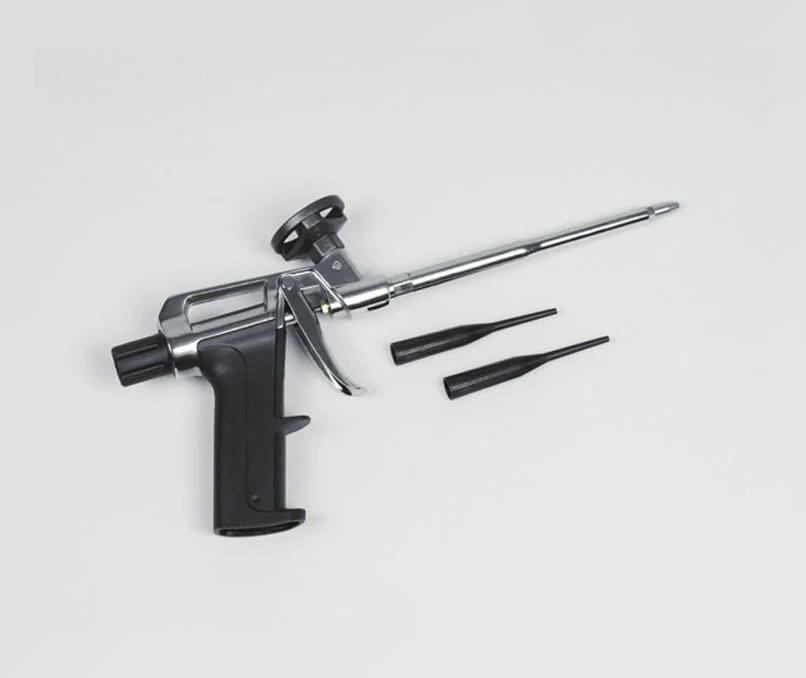

Foam Gun
Metal-handle applicator for controlled placement of SuperForm low-expansion foam.
Sizes & ordering
- Compatible cans
- 24 oz (680 g) SuperForm foam
- Ordering
- Sold individually
Keep cleaner with the gun so it is ready for the next use.
05 / Fibreglass rebar
Reinforcement without steel corrosion.
MST-BAR offers a lightweight GFRP reinforcement option. Bar size, spacing, bends and approval belong in the structural design.

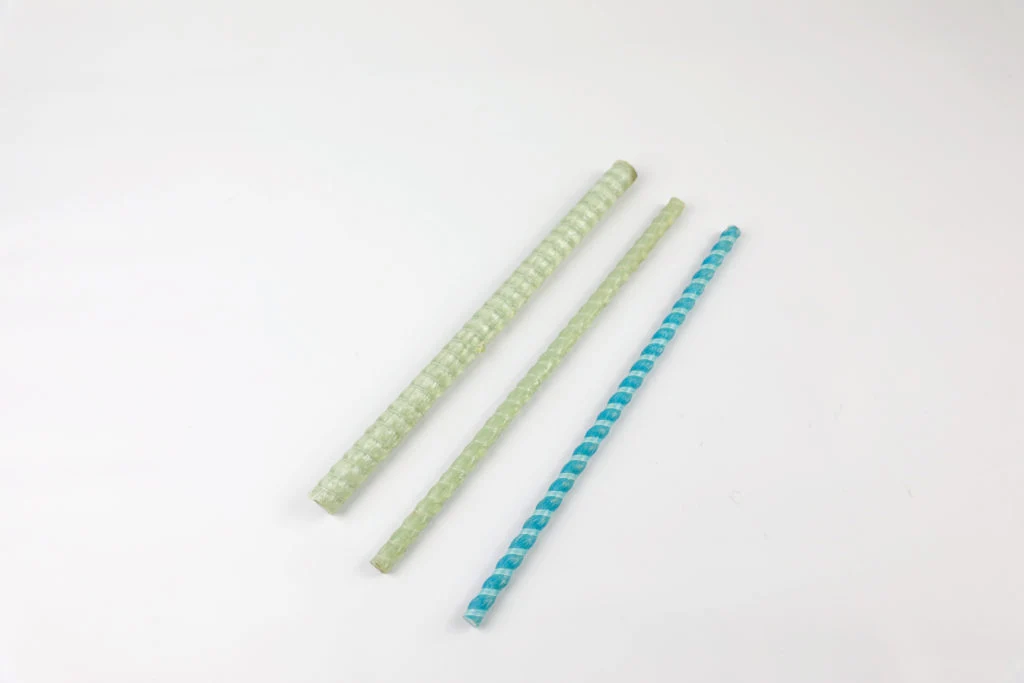

MST-BAR®
Glass fibre reinforced polymer rebar with integral ribs for concrete reinforcement. It is lightweight to handle and does not rust like steel.
Sizes & ordering
- Material
- GFRP
- Applications
- ICF walls and concrete flatwork, as designed
Do not substitute bars by diameter alone. Use the approved design, local code requirements and current MST-BAR documentation.
MST-BAR technical resources ↗06 / Ties, screws & tape
The details that make pour day easier.
Protect the interlocks, secure courses and support cut forms. Add the handling tools and fasteners your crew will need.

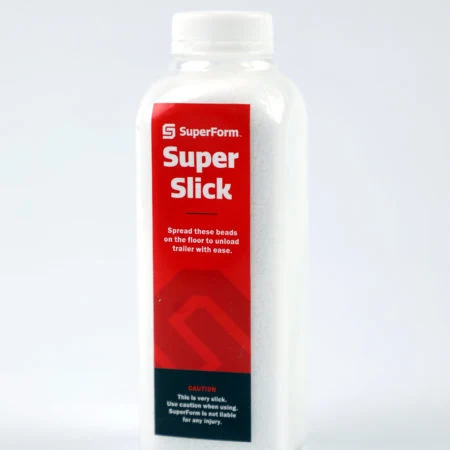

Super Slick
EPS beads used on a trailer floor to help slide ICF bundles during unloading.
Caution: creates a very slippery surface. Use extreme care during handling and cleanup.
Sizes & ordering
- Ordering
- Sold individually

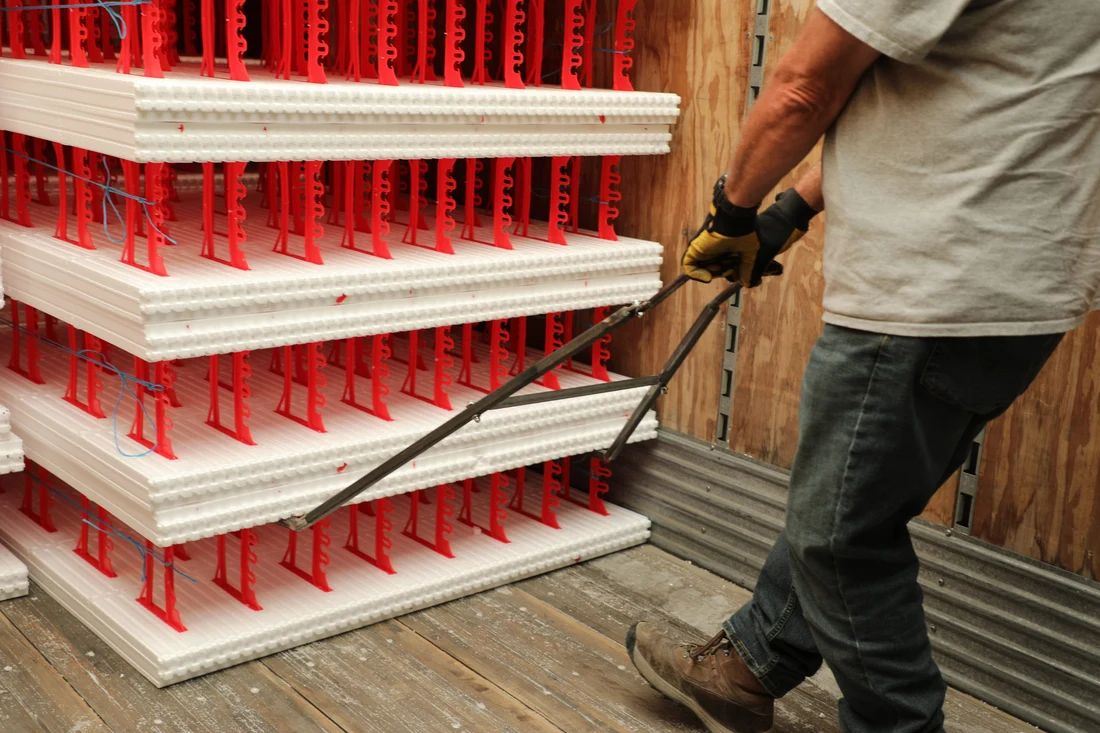

ICF Easy Puller
A handling tool for pulling straight blocks, corners and T-blocks from a trailer without digging into the foam.
Sizes & ordering
- Storage
- Folding angles for compact storage
- Use
- ICF unloading

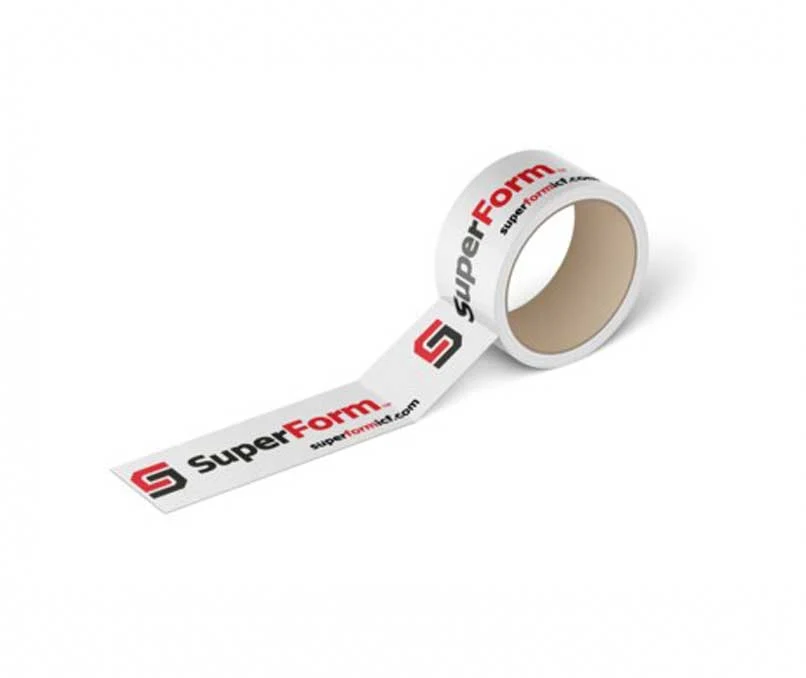

SuperForm 4-inch Tape
Covers the top interlocks during a pour to help keep concrete out of the knobs needed for the next course.
Sizes & ordering
- Roll
- 4 in × 215 ft
- Packaging
- 30 rolls per box
- Ordering
- Individually or per box

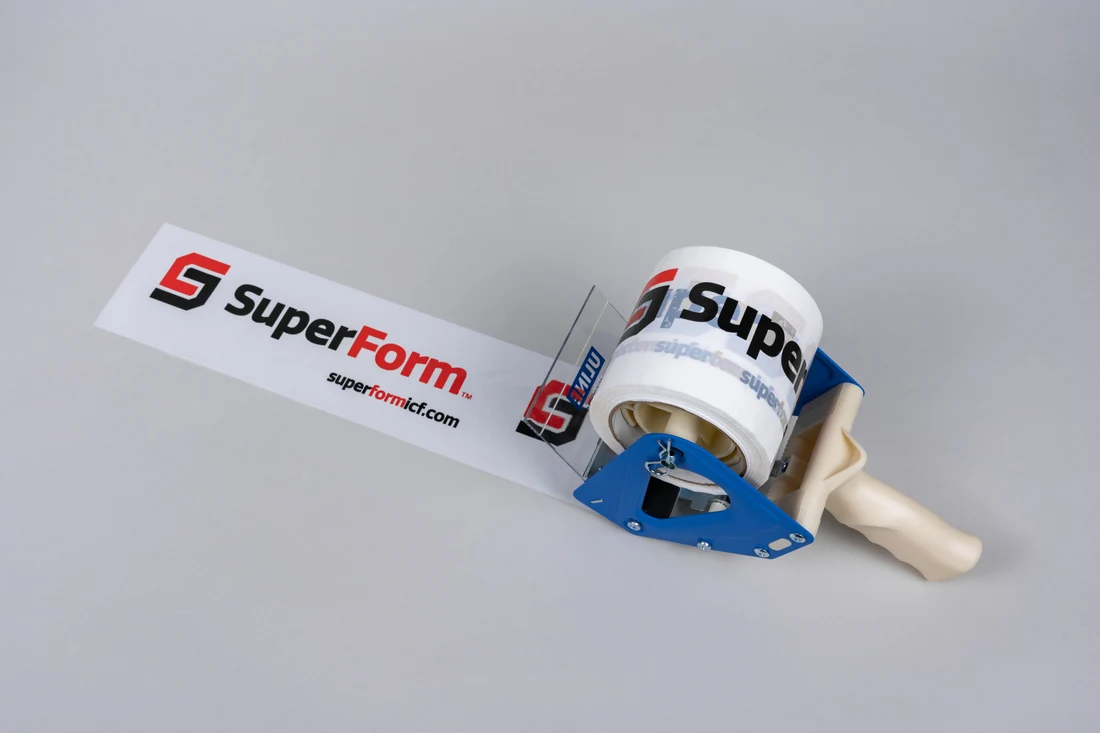

4-inch Top Loader Tape Dispenser
A top-loading dispenser for applying SuperForm tape smoothly, with side plates that protect the roll.
Sizes & ordering
- Tape width
- 4 in
- Ordering
- Sold individually

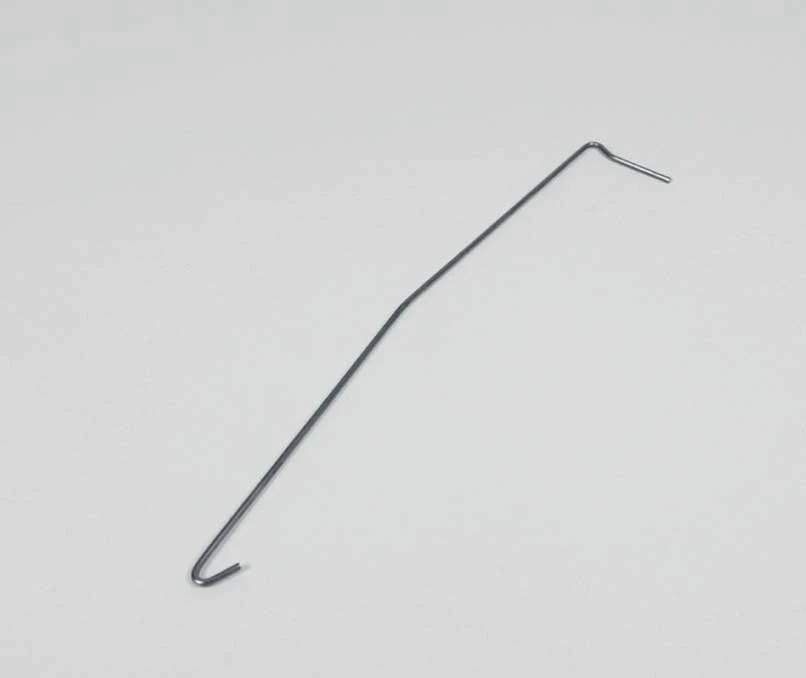

Wire Ties
Bent wire ties connect one course to the course above, including corners and the top row where the installation detail calls for them.
Sizes & ordering
- Sizes
- 6, 6½ or 8 in
- Packaging
- 100 per box

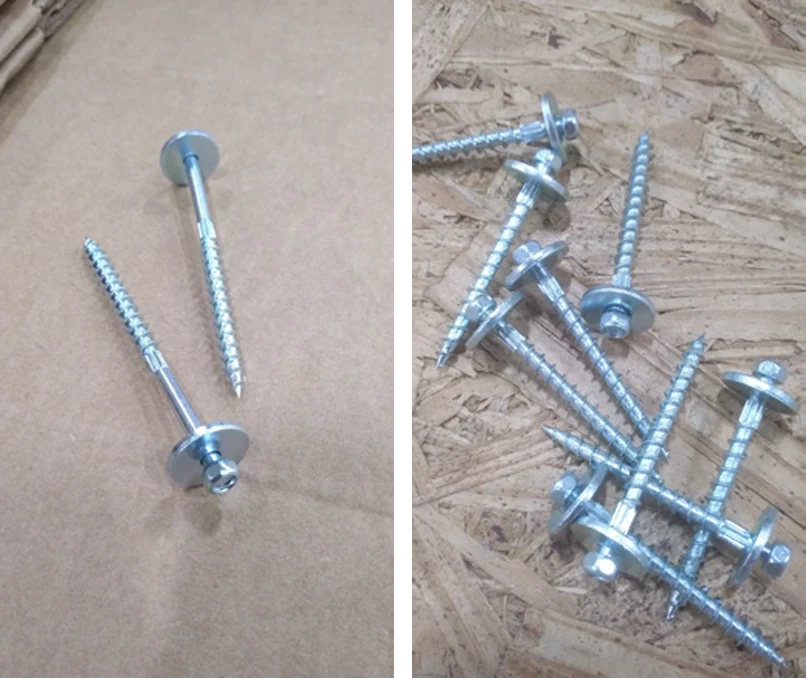

ICF Screws
Hardened, galvanized ClearCo screws with loose washers and coarse threads for fastening to the plastic webs.
Sizes & ordering
- Lengths
- 2 or 3 in
- Packaging
- 500 per box; 4 boxes per case
Select length and spacing to suit the attachment and current installation detail.

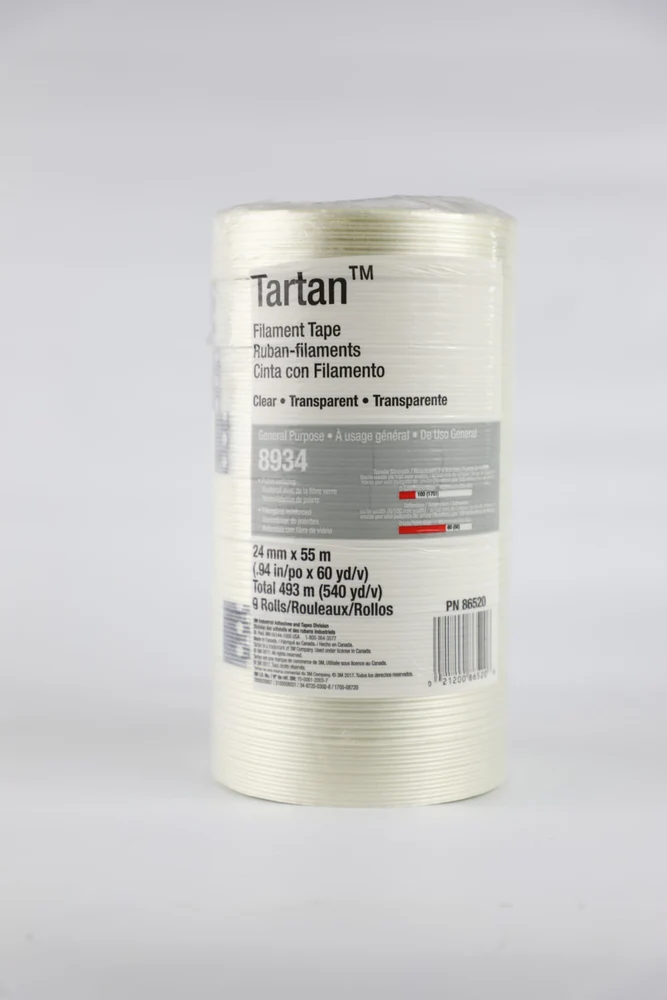

Fiber Tape
Additional support for field-cut forms, brick-ledge corners and radius panels where the installation instructions require it.
Sizes & ordering
- Packaging
- 9 rolls per sleeve
- Typical detail
- Cut EPS extending more than 4 in (100 mm) past the last web
Sold per sleeve.

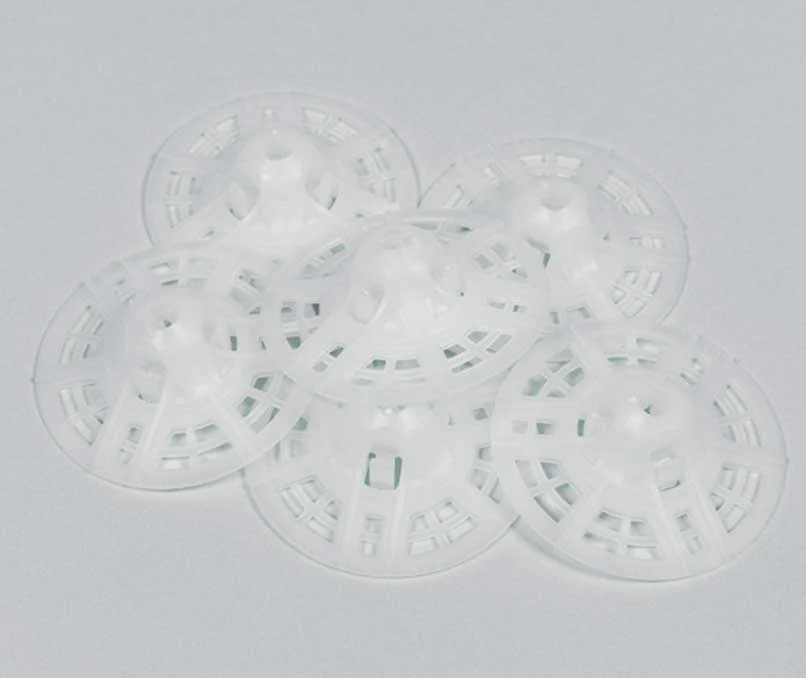

Devil Washers
Washer fastening system used with deck screws to attach exterior insulation finish systems to suitable wall surfaces.
Sizes & ordering
- Packaging
- 500 or 1,000 per box
Match the screw, washer and attachment schedule to the specified finish system.
07 / Parging
Finish exposed ICF with a reinforced base.
Pair DuROCK B2000 with the specified fibreglass mesh to prepare an EPS foundation surface for its approved finish.

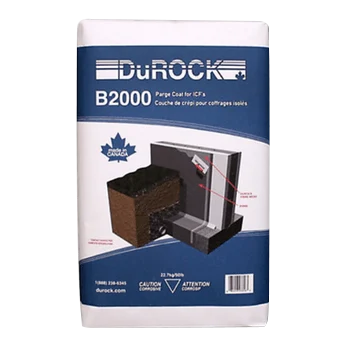

DuROCK B2000
Acrylic-modified cementitious base coat for EPS ICF. Used with reinforcing mesh to form a flexible, crack-resistant parging base.
Sizes & ordering
- Bag
- 22.7 kg (50 lb)
- Approximate yield
- 80 ft² (7.5 m²) at 2 mm thickness
- Ordering
- Sold per bag
SuperForm lists approximately 5 bags per roll of 5 oz reinforcing mesh. Confirm coverage for the specified coat thickness.
Fibreglass Mesh
Alkali-resistant DuROCK reinforcing mesh for the compatible exterior insulation finish and parging assembly.
Sizes & ordering
- Roll
- 1 m × 44 m (39 in × 144 ft)
- Weight
- 5 oz; nominal 165 g/m²
- Ordering
- Sold per roll
Embed in the compatible base coat following DuROCK instructions.
Before you order
A few details now.
Fewer surprises later.
Product information and imagery are from SuperForm’s current accessory range. Ordering quantities and coverage are planning references; we’ll discuss availability for your project.
Can I order accessories for an ICF project I’m building?
Contact Woodwright with your product list, location and timing to discuss a materials order. Tell us whether you need accessories only or the blocks and supporting products together.
How do I know which waterproofing products go together?
Begin with the waterproofing and drainage detail specified for your project. Soprema, Hulk and the drainage membranes are different systems with different installation requirements. Include the compatible sealants, trim and fasteners rather than substituting parts between systems.
Are all these products in stock?
This page shows the SuperForm accessory range. Contact Woodwright to confirm local availability, lead times, quantities and delivery arrangements before scheduling the work.
Can you help if I don’t have a complete materials list?
Send the plans you have, the project location and your target start date. Include wall height and core size if known. We can discuss the missing information and the next step; structural selections still need to follow your approved design.
Plan with the right information
Keep the details close.
Product selection, reinforcement and installation should follow the current manufacturer documents and your project’s approved design.
Let’s work through your project
The right materials.
A clearer next step.
Tell Woodwright what you’re building, where it’s going and when you hope to start. We’ll discuss the products, quantities and availability for your project.
Email opens your mail app. Attach plans or a materials list there.
james@woodwright.ca
What to send
- Your project locationTown, site access and delivery considerations.
- Plans or a starting listWall heights, core size and quantities, if known.
- Your timing & contact detailsYour target start date and the best number to reach you.
Need Woodwright for the construction as well? Start the client onboarding process so we can clarify your scope and next steps.
